Security Providers

A security provider is used to override the default security behavior when using early bound security. It gives the implementor the ability to indicate the access control for each indexed document, along with the current users group membership.

The Perceptive Search Security Model is extensible allowing you to map non-Windows based security systems into the early binding module.

The system currently supports extension via Script, however this will be extended to support .net, DLL, com and Java modules in the near future.

There are several use-cases to consider when implementing the custom connectors:

• The system uses Windows to authenticate the user (by default), with:
• the content source using Windows (Active Directory) groups not stored in NTFS
• the content source using custom groups, independent of those stored in Windows/Active Directory
• The system does not use Windows to authenticate the user (Lotus Notes for example)

Windows User, Built-in Windows Groups

This scenario covers systems that use Windows to both authenticate the user and Windows users/groups to control permissions to resources, but the security information is not stored in the NTFS file system. An example of this maybe an SQL database.

For this option, all that is needed to be implemented is the RequestSecurity function that returns the permissions for the requested resources. This will be called once for each document at indexing time.

The sample below demonstrates programmatically setting permissions based on the folder, overriding the NTFS permissions.

function RequestSecurity(Request, Response)
	if InStr(Request.Filename, "/top-secret/") > 0 then
		Response.AddSID "GroupTopSecret", True
	elseif InStr(Request.Filename, "/classified/") > 0 then
		Response.AddSID "GroupClassified", True
	else
		Response.AddSID "Everyone", True
	end if
end function

Windows User, Custom Groups

This scenario covers systems that use Windows to authenticate the user, but use a different user/group mechanism than standard Windows/Active Directory. An example of this is an ASP.NET website that uses a database stored, role based security scheme.

For this option, we need to implement both RequestSecurity to return the permissions of the resource; and RequestUserGroups to return the list of groups that the user is a member of.

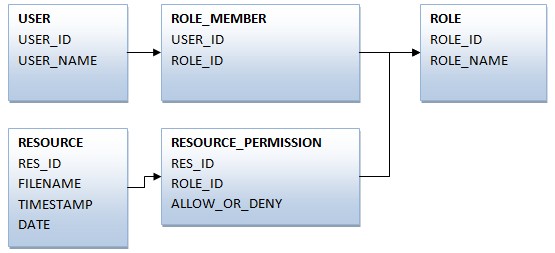

Consider the following database schema:

In the above schema:

• the USER_NAME column contains the user's Windows username.
• a user can belong to zero or more roles.
• a resource can contain zero or more permissions including or excluding specific roles.
• this sample assumes the RESOURCE table has been indexed.

function RequestSecurity(Request, Response)
	Set RecordSet = ExecuteSQL("		SELECT
			ROLE.ROLE_NAME,
			RESOURCE_PERMISSION.ALLOW_OR_DENY
		FROM
			RESOURCE_PERMISSION
			JOIN ROLE ON ROLE.ROLE_ID = RESOURCE_PERMISSION.ROLE_ID
			JOIN RESOURCE ON RESOURCE.RES_ID = RESOURCE_PERMISSION.RES_ID
		WHERE
			RESOURCE.FILENAME = ?", Request.Filename)

	for each Record in RecordSet
		Response.Add Record("ROLE_NAME"), Record("ALLOW_OR_DENY")
	next
end function

function RequestUserGroups(UserName, Response)
	Set RecordSet = ExecuteSQL("		SELECT
			ROLE.ROLE_NAME
		FROM
			ROLE
			JOIN ROLE_MEMBER ON ROLE_MEMBER.ROLE_ID = ROLE.ROLE_ID
			JOIN USER ON USER.USER_ID = ROLE_MEMBER.USER_ID
		WHERE
			USER.USER_NAME = ?", Username)

	for each Record in RecordSet
		Response.Add Record("ROLE_NAME")
	Next
end function

Non Windows User based Security System

At this time, Perceptive Search supports one user authentication system to be installed on a web site at a time. A lot of systems use Windows as their user authentication system (File System, SharePoint, TRIM etc), so there is no special requirement to search these systems together.

For other systems, it's recommended that a mapping be applied between the Windows username and the remote system username. This becomes easier if the organization has a username policy that enforces that the same username be is used for both Windows and the other systems (i.e. logon to Windows as Joe.Smith and Lotus as Joe.Smith).

As with "Windows User, Custom Groups", you will need to implement both RequestSecurity and RequestUserGroups.

To create a security provider script, you need to implement some of the functions below:

• RequestSecurity
• RequestUserGroups

Sub RequestSecurity(Request, Response)

RequestSecurity is called during indexing allow you to provide the access control information for the requested document.

Parameters

Request
Contains information about the document whose security is being requested, properties include:

Response
Populate the response object with the security for the document.  Response properties/methods are:

Function RequestUserGroups(Username, Response)

Requested at search time, allows you to return the groups that the searching user is a member of.

Parameters

Username - The name of the searching user

Response
Populate the response object with the security for the document.  Response properties/methods are:
